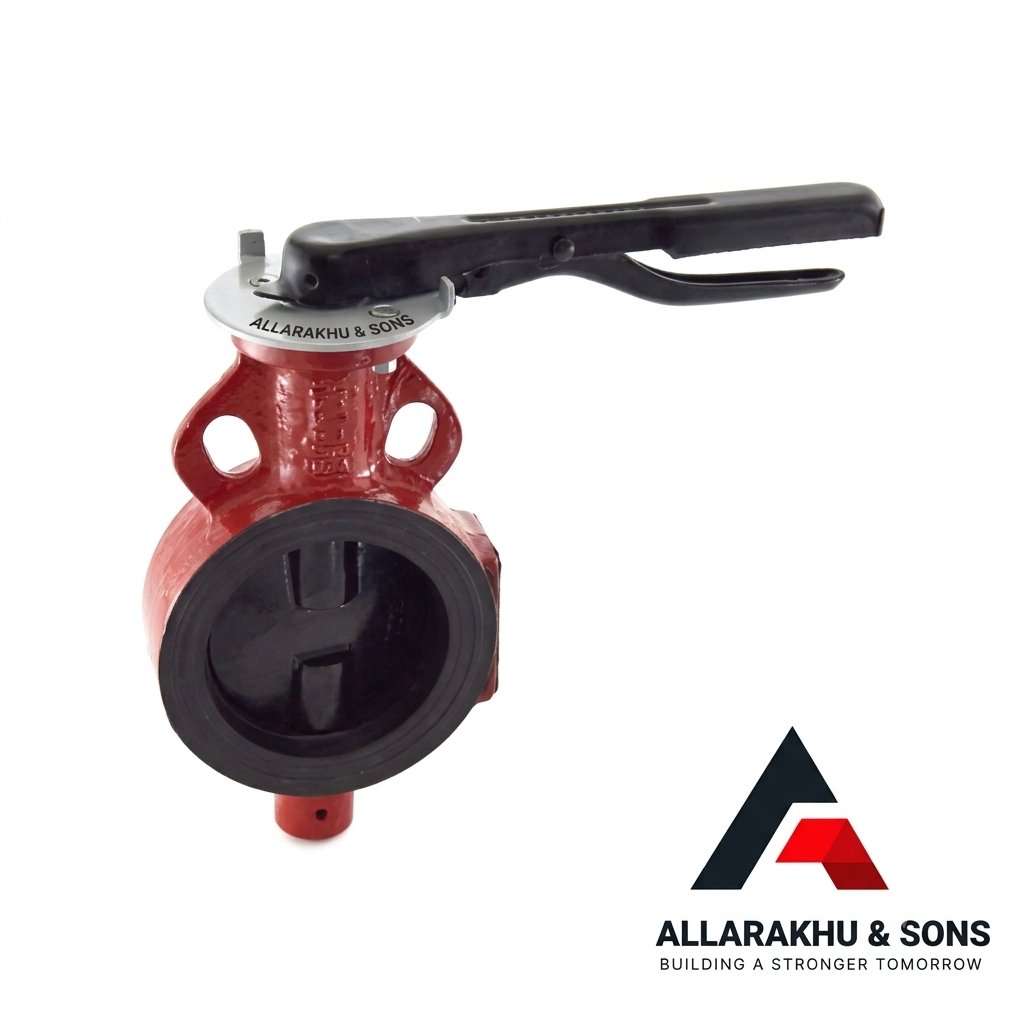

Butterfly Valve (Wafer Type), PN 2.5 with S.G Iron Disc
Butterfly Valve (Wafer Type), PN 2.5 with S.G Iron Disc is designed for suitable industrial pipeline applications requiring reliable flow isolation and control. Its wafer construction allows installation between compatible pipe flanges while providing a compact pipeline valve arrangement.
The valve is lever operated and uses an S.G. Iron body with an epoxy-coated S.G. Iron disc. The disc is accurately guided between two stainless-steel stems for the specified valve configuration.
The valve incorporates an integrally moulded rubber lining that provides seating for the disc and acts as a primary seal around the stem and matching pipe flange connection.
Key Features
- Wafer-type construction
- PN 2.5 pressure rating
- Lever-operated design
- S.G. Iron body
- S.G. Iron epoxy-coated disc
- Two-piece stainless-steel stem design
- EPDM / Nitrile lining
- Optional Neoprene, Viton and Silicon lining
- PTFE packing bush
- Bronze stem bushes
- Stainless-steel stems
- Compact sandwich installation between compatible flanges
- Suitable for steam, water, oil, air and gases
- Available from 40 mm to 150 mm
- Designed according to IS 13095 / BS EN 593 (BS 5155)
Wafer Type Construction
The wafer design allows the valve to be positioned between compatible pipeline flanges. This arrangement provides a compact installation solution for industrial piping systems.
Before installation, customers should verify the pipeline size, flange standard, pressure class, bolt arrangement and available installation space.
S.G. Iron Body
The valve body is manufactured from S.G. Iron according to IS 1865 Grade 400/15. The body forms the main pressure-containing structure and houses the disc, stem and lining arrangement.
S.G. Iron Disc
The disc is manufactured from S.G. Iron according to IS 1865 Grade 400/15 and is epoxy coated. The disc is accurately guided between the upper and lower stainless-steel stems.
The S.G. Iron disc configuration provides a specific material combination for applications where the selected valve construction is compatible with the operating medium and service conditions.
Lever Operation
The valve is operated manually through a flow-control lever and notch plate arrangement. This allows the valve position to be adjusted according to the required flow-isolation application.
A padlock arrangement, limit switch and gear arrangement can also be provided according to the applicable configuration and requirement.
Two-Piece Stem Design
The valve uses a two-piece stem arrangement with upper and lower stainless-steel stems. The stems are guided through the specified PTFE and bronze bush arrangement.
The upper and lower stem configuration connects the operating mechanism with the disc while maintaining the specified wafer valve construction.
Lining Options
The valve uses integrally moulded rubber lining that provides seating to the disc and contributes to sealing around the stem and matching pipe flanges.
EPDM and Nitrile are the specified standard lining options. Neoprene, Viton and Silicon lining configurations can also be provided according to requirement.
Lining selection should be based on the operating medium, chemical compatibility, pressure and temperature conditions.
Pressure and Temperature Rating
The valve is rated PN 2.5 with a maximum working pressure of 2.5 MPa.
The specified hydrostatic shell test pressure is 3.75 MPa and the seat hydrostatic test pressure is 2.75 MPa.
The maximum specified working temperature is 90°C. Actual operating conditions should remain within the applicable product specifications.
Flange Compatibility
The wafer configuration is designed for sandwich installation between compatible flanges. The specified flange compatibility includes BS 10 Tables D, E, F and H, DIN, PN 10, PN 16, PN 25, PN 40, ASA 150, ASA 300, IS 778, IS 6392 Table 17 and IS 1538.
Customers should verify flange dimensions and pressure class before installation.
Suitable Media
The specified valve configuration is suitable for applicable systems handling steam, water, oil, air and gases.
- Steam
- Water
- Oil
- Air
- Gases
Final material and lining selection should be based on the actual operating medium and service conditions.
Available Sizes
The specified nominal sizes are:
- 40 mm / 1½ inch
- 50 mm / 2 inch
- 65 mm / 2½ inch
- 80 mm / 3 inch
- 100 mm / 4 inch
- 125 mm / 5 inch
- 150 mm / 6 inch
Dimensions
| Size | A ±1.5 | ØB | C Approx. | D Approx. | E Approx. |
|---|---|---|---|---|---|
| 40 mm / 1½ inch | 33 mm | 40.6 mm | 57 mm | 113 mm | 260 mm |
| 50 mm / 2 inch | 43 mm | 53 mm | 73 mm | 125 mm | 260 mm |
| 65 mm / 2½ inch | 46 mm | 67.5 mm | 80 mm | 140 mm | 260 mm |
| 80 mm / 3 inch | 46 mm | 81.3 mm | 88 mm | 145 mm | 260 mm |
| 100 mm / 4 inch | 52 mm | 101.5 mm | 110 mm | 178 mm | 260 mm |
| 125 mm / 5 inch | 56 mm | 127.1 mm | 122 mm | 190 mm | 260 mm |
| 150 mm / 6 inch | 56 mm | 151.5 mm | 151 mm | 204 mm | 260 mm |
Dimensions marked approximately are subject to approximately ±10 mm tolerance.
Industrial Applications
This valve can be considered for suitable industrial applications where manual flow isolation and control are required.
- Industrial water pipelines
- Process piping systems
- Water distribution systems
- Steam pipelines
- Oil handling systems
- Compressed air systems
- Gas pipeline systems
- Utility piping
- Industrial plants
- Infrastructure projects
- General industrial flow-control systems
Industrial Valve Supply in Surat
Allarakhu & Sons supplies industrial valves and piping products from Surat, Gujarat, for industrial, commercial and project requirements.
Our industrial supply coverage includes Surat GIDC, Sachin GIDC, Pandesara, Udhna, Hazira, Palsana and Kadodara, along with Ankleshwar GIDC, Bharuch GIDC and Vapi GIDC.
Customers can contact Allarakhu & Sons for valve availability, technical requirements, bulk quantities and project supply enquiries.
Industrial Supply Across India
Allarakhu & Sons serves industrial product enquiries across Surat, Delhi, Mumbai, Bengaluru, Pune, Hyderabad, Ahmedabad, Jaipur, Chennai, Chandigarh, Lucknow, Goa, Indore, Nagpur, Dehradun, Kochi, Shimla, Srinagar, Noida and Gurugram.
Customers throughout India can contact Allarakhu & Sons for industrial valve requirements, bulk orders and project-based supply.
How to Select a PN 2.5 Butterfly Valve
Before selecting a valve, consider the pipeline diameter, operating pressure, operating temperature, pipeline medium, flange standard, disc material and lining material.
For applications involving corrosive or chemically active media, lining compatibility should be checked carefully before ordering.
Customers should also confirm whether manual lever operation, limit switch, padlock arrangement or gear operation is required.
Optional Arrangements
The specified configuration can also be supplied with a limit switch, padlock arrangement or gear arrangement according to requirement and applicable product configuration.
Customers requiring any optional arrangement should mention it when requesting a quotation.
Product Enquiry and Bulk Orders
Allarakhu & Sons accepts enquiries for individual valve requirements, bulk quantities and industrial projects.
For a quotation, provide the required valve size, quantity, pipeline medium, operating pressure, operating temperature and delivery location.
Frequently Asked Questions
What is a wafer-type butterfly valve?
A wafer-type butterfly valve is installed between compatible pipeline flanges. Its compact construction makes it suitable for various industrial piping arrangements.
What is the pressure rating of this valve?
The valve has a PN 2.5 pressure rating with a maximum working pressure of 2.5 MPa.
What is the shell test pressure?
The specified hydrostatic shell test pressure is 3.75 MPa.
What is the seat test pressure?
The specified hydrostatic seat test pressure is 2.75 MPa.
What is the maximum working temperature?
The specified maximum working temperature is 90°C.
What is the disc material?
The disc is manufactured from S.G. Iron according to IS 1865 Grade 400/15 and is epoxy coated.
What is the valve body material?
The body is manufactured from S.G. Iron according to IS 1865 Grade 400/15.
How is the valve operated?
The standard configuration is lever operated using a flow-control lever and notch plate.
Which lining options are available?
EPDM and Nitrile are specified lining options. Neoprene, Viton and Silicon configurations can also be provided according to requirement.
Which sizes are available?
The specified sizes range from 40 mm to 150 mm, including 40, 50, 65, 80, 100, 125 and 150 mm.
Which media can the valve handle?
The specified suitable media include steam, water, oil, air and gases, subject to proper material and lining compatibility.
Can the valve be supplied with a gear arrangement?
Yes. A gear arrangement can be provided according to requirement and applicable configuration.
Can a padlock arrangement be supplied?
Yes. A padlock arrangement can be provided according to requirement.
Can a limit switch be supplied?
Yes. A limit switch can be provided according to requirement and applicable valve configuration.
Where can I get a PN 2.5 butterfly valve in Surat?
Allarakhu & Sons supplies industrial valves from Surat, Gujarat, and can assist with product availability, technical requirements, quantities and quotations.
Can I request a bulk quotation?
Yes. Customers can provide the required valve size, quantity, application and delivery location to Allarakhu & Sons for bulk and project-based quotation requirements.
