Technical Product Specifications
| Specification | MV 101 | EF 212 | MV 106 |
|---|---|---|---|
| Product | Brass Ball Valve | Brass Ball Valve | Brass Ball Valve with Butterfly Handle |
| Design | Full Bore | Not specified in supplied source | Not specified in supplied source |
| Construction | Two Piece | Forged Brass Body | Forged Brass Body |
| End Connection | Screwed Female Ends | Not specifically stated | Not specified |
| Thread | BSP | BSP | Not specified |
| Operation | Quarter Turn | Not specified | Aluminium Knob Operated |
| Actuation | Lever Operated | Not specified | Butterfly-handle/knob configuration |
| Ball | Not specified | Brass | Not specified |
| Stem | Not specified | Brass | Not specified |
| Seal | PTFE | PTFE | Not specified |
| Working Temperature | -20°C to 100°C | Not specified | Not specified |
| Test Pressure | 30–40 kg/cm²g | 30 kg/cm² | Not specified |
| Listed Media | Water, Air, Gas, Oil | Water, Air, Oil | Not specified |
| Size Range | 1/4″–4″ | 1/2″–2″ | 1/4″–1″ |
The technical values above follow the supplied product reference in the uploaded brief.
Product Variants

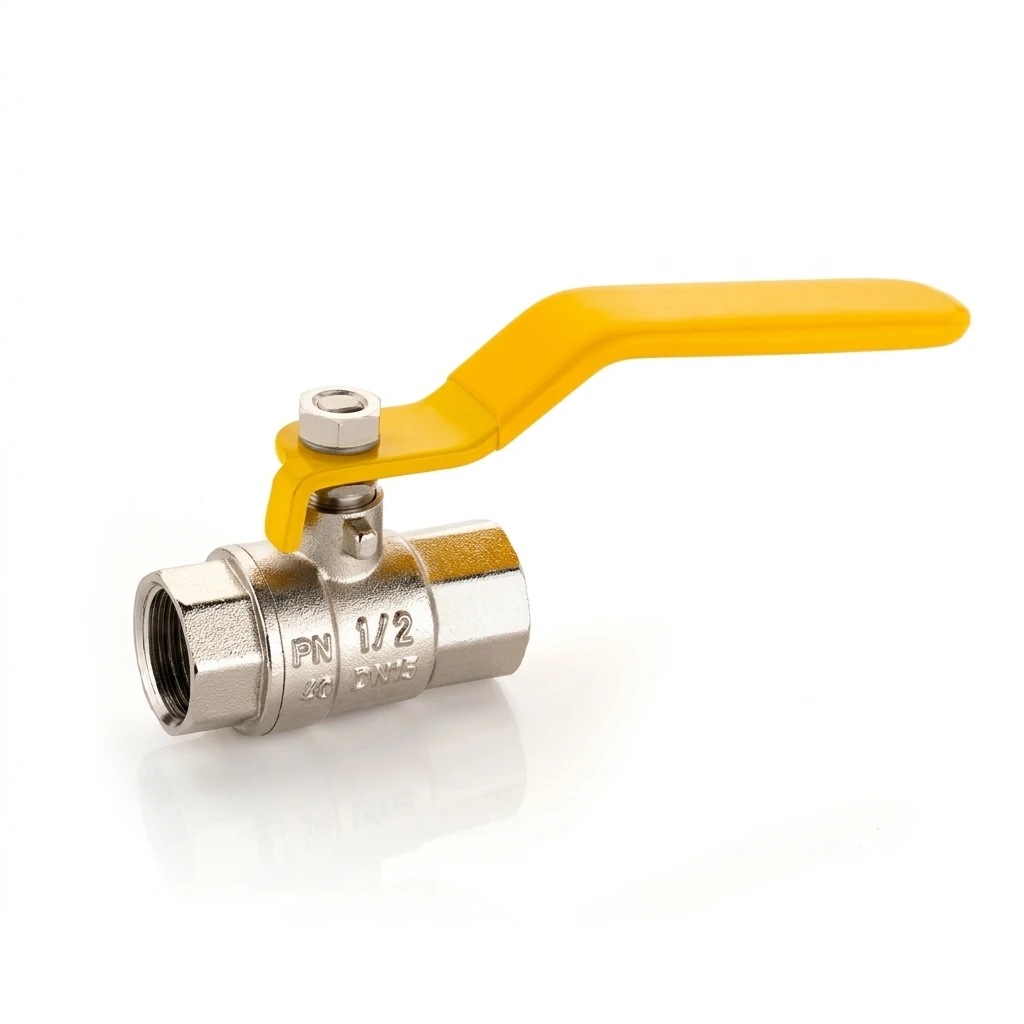

MV 101 — Full Bore Two-Piece Brass Ball Valve
The MV 101 configuration is specified as a full-bore, two-piece brass ball valve with screwed female ends and BSP threading. It uses quarter-turn lever operation and a PTFE seal.
The supplied technical information lists a working temperature of -20°C to 100°C and a test pressure of 30 to 40 kg/cm²g. The source lists water, air, gas and oil among the suitable media for this variant.
The listed size range extends from 1/4 inch through 4 inches.
MV 101 Size Options
- 1/4″
- 3/8″
- 1/2″
- 3/4″
- 1″
- 1-1/4″
- 1-1/2″
- 2″
- 2-1/2″
- 3″
- 4″
The supplied source additionally lists:
- Nickel Polish: 1/4″ (8 mm) to 4″ (100 mm)
- Brass Polish: 1/2″ (15 mm) to 2″ (50 mm)
- Male x Female Threaded: 1/4″ (8 mm) to 1/2″ (15 mm)

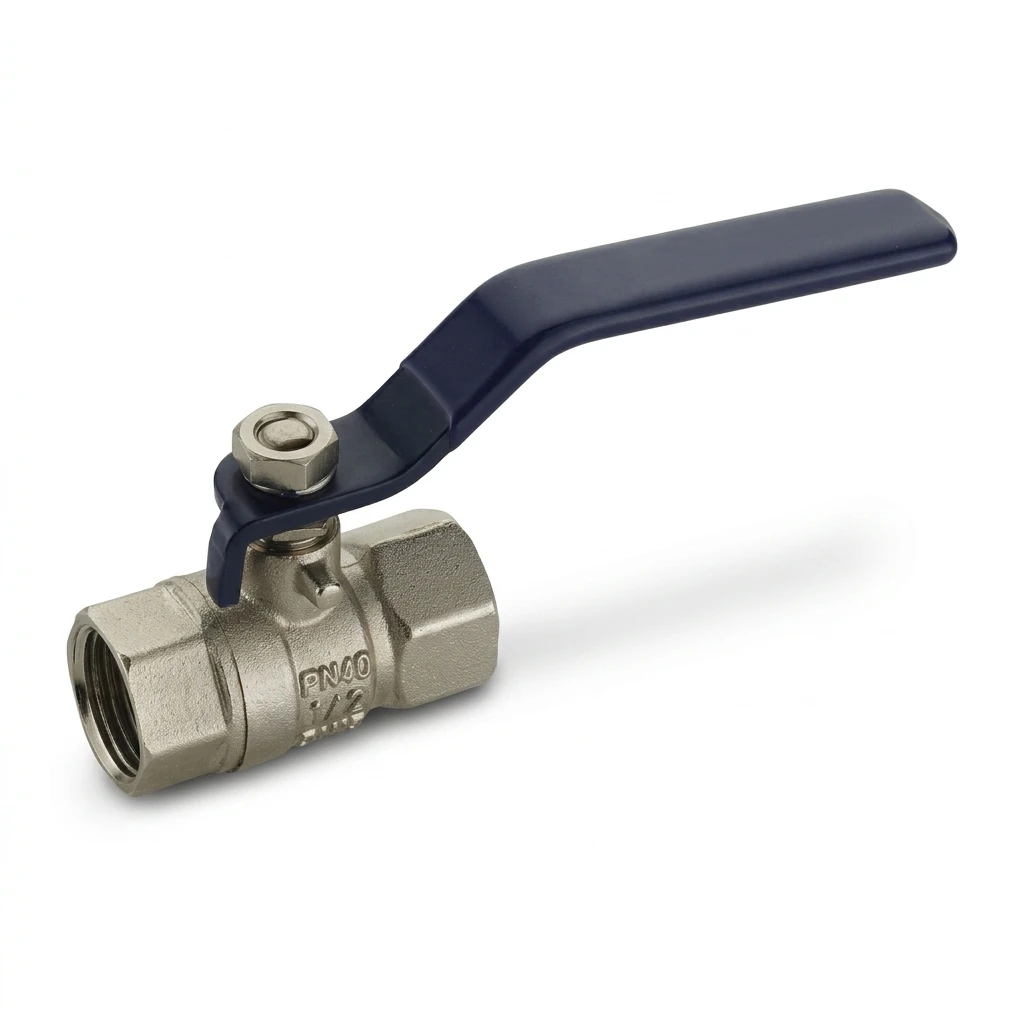

EF 212 — Forged Brass Ball Valve
The EF 212 variant is specified with a forged brass body, BSP threading, brass ball, brass stem and PTFE seal.
The supplied source lists water, air and oil as suitable media and gives a test pressure of 30 kg/cm². The listed sizes range from 1/2 inch to 2 inches.
EF 212 Size Options
- 1/2″
- 3/4″
- 1″
- 1-1/4″
- 1-1/2″
- 2″
MV 106 — Brass Ball Valve with Butterfly Handle
The MV 106 is specified with a forged brass body and an aluminium knob-operated configuration.
The supplied source lists the following sizes:
- 1/4″
- 3/8″
- 1/2″
- 3/4″
- 1″
No pressure, temperature, seal or media specification should be assigned to MV 106 unless separately verified.
Size / Connection Information
The available size range varies by product variant.
MV 101 covers the widest listed range, from 1/4 inch to 4 inches, while EF 212 is listed from 1/2 inch to 2 inches and MV 106 from 1/4 inch to 1 inch.
Connection information also varies. MV 101 is specified with screwed female ends and BSP threading. EF 212 is specified with BSP threading, while the supplied information does not establish a connection specification for MV 106.
A buyer should confirm the required size, thread arrangement and exact variant before procurement.
Brass Ball Valves for Industrial Piping Requirements
Brass ball valves use a rotating ball mechanism to provide a practical method of isolating flow in suitable piping systems. Their quarter-turn operating concept allows the valve to move between open and closed positions through a relatively simple manual operation.
For industrial procurement, the correct selection depends on more than the valve material. Size, connection type, valve construction, media, operating conditions and the exact product configuration should all be considered before selecting a valve.
Brass Construction and Valve Configuration
The supplied product range includes different brass ball valve configurations. Depending on the selected variant, the construction may include a full-bore two-piece design, forged brass body, brass ball and stem, PTFE sealing components or a butterfly-handle arrangement.
These specifications apply to the respective variants and should not be treated as specifications for every brass ball valve in the range.
Full Bore Two-Piece Configuration
The MV 101 variant is specified as a full-bore, two-piece construction with screwed female ends and BSP threading. It is operated through a quarter-turn lever mechanism and uses a PTFE seal.
The supplied source lists water, air, gas and oil as suitable media for this variant, together with a working temperature range of -20°C to 100°C and a test pressure of 30 to 40 kg/cm²g.
Forged Brass Construction
The EF 212 and MV 106 variants are specified with forged brass bodies. EF 212 additionally specifies a brass ball, brass stem and PTFE seal, while MV 106 is identified as a brass ball valve with an aluminium knob-operated configuration.
Because the technical information differs between these variants, buyers should identify the required model before comparing pressure, media, size or operating information.
BSP Threaded Brass Ball Valve Options
BSP threading is specified for the MV 101 and EF 212 variants. MV 101 is additionally described with screwed female ends, while the source lists a male x female threaded size range for the applicable configuration.
Thread compatibility should be checked against the existing piping or fitting arrangement before procurement. The exact connection should be confirmed for the selected product variant.
PTFE Sealing
PTFE is specified as the seal material for MV 101 and EF 212. Seal selection should always be considered together with the intended media and operating conditions.
The supplied product information does not specify a PTFE seal for MV 106, so the specification should not be transferred from the other variants.
Applications — HTML
Applications of Brass Ball Valves
Depending on the selected variant and its specified operating conditions, brass ball valves can be considered for suitable piping and flow-isolation requirements.
- Water piping applications
- Air service applications
- Gas applications where the selected valve is specified as suitable
- Oil applications where supported by the selected variant
- Industrial piping
- Engineering applications
- Fabrication requirements
- Plumbing-related installations
- Industrial maintenance
- General fluid isolation requirements
The supplied source specifically lists water, air, gas and oil for MV 101, while EF 212 lists water, air and oil. No media specification should be assumed for MV 106 without separate technical confirmation.
How to Select the Right Brass Ball Valve
Choosing the appropriate valve starts with identifying the actual piping and operating requirements. The product variant should be selected only after checking the relevant technical information.
- Identify the required size: Confirm the nominal valve size required for the piping arrangement.
- Check the connection: Determine whether the required configuration is screwed, female threaded or male/female threaded.
- Confirm the thread: Check the specified BSP connection against the mating pipe or fitting.
- Identify the media: Confirm whether the application involves water, air, gas, oil or another medium.
- Check operating conditions: Review the required pressure and temperature against the specifications of the selected variant.
- Select the construction: Determine whether the application requires the MV 101, EF 212, MV 106 or another verified configuration.
- Check sealing requirements: Where applicable, confirm the PTFE seal specification and media compatibility.
- Confirm quantity: Provide the required quantity when requesting a quotation or product enquiry.
- Verify the specification: Confirm all relevant technical details before final procurement.
Why Enquire from Allarakhu & Sons
Brass Ball Valve Enquiries from Allarakhu & Sons
Allarakhu & Sons is based in Surat, Gujarat, and provides industrial product sourcing support for businesses with engineering, construction, fabrication, manufacturing and maintenance requirements.
For a brass ball valve enquiry, buyers can share the required size, configuration, connection, media and known operating requirements. This information helps identify the relevant product option and allows the requirement to be discussed before procurement.
Allarakhu & Sons operates from A-3, 7/4720, Badri Mansion, Lal Darwaja Station Road, Surat – 395003, Gujarat, India.
Mobile: +91 9825178797
Contact the team for product details, specification enquiries and brass ball valve requirements.
FAQs
What are Brass Ball Valves used for?
Brass ball valves are used for suitable flow-isolation requirements in piping systems. The actual application depends on the selected valve configuration, media and operating conditions.
What is a full-bore brass ball valve?
A full-bore configuration provides a flow passage designed around the valve’s nominal connection size. The supplied MV 101 product is specified as full bore.
What is a two-piece brass ball valve?
A two-piece ball valve uses a body construction made from two main sections. MV 101 is specified as a two-piece configuration.
What thread is specified for the MV 101?
The supplied product information specifies BSP threading and screwed female ends for MV 101.
What sizes are available for MV 101?
The supplied list ranges from 1/4 inch through 4 inches, including 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″ and 4″.
What is the difference between MV 101 and EF 212?
MV 101 is specified as a full-bore two-piece valve with screwed female BSP ends, quarter-turn lever operation and PTFE sealing. EF 212 is specified with a forged brass body, BSP thread, brass ball, brass stem and PTFE seal.
What is the MV 106 Brass Ball Valve?
MV 106 is specified as a brass ball valve with a forged brass body and aluminium knob-operated configuration. Its listed sizes range from 1/4 inch to 1 inch.
What media are the listed valves suitable for?
MV 101 is listed for water, air, gas and oil. EF 212 is listed for water, air and oil. The supplied information does not specify media for MV 106.
How do I select the correct brass ball valve?
Consider the required size, connection, thread, media, operating conditions, construction, sealing arrangement and project specifications. Confirm the exact variant before procurement.
